PRO-WP 150
WELDING POSITIONERS
The compact design takes up minimal floor space and tilting up to 90 degrees improves ergonomics of the workspace. Selection of various auxiliary accessories make it possible to create an advanced modular welding station and customize it depending on required welding or cutting applications to maximize production efficiency.
Want to make sure the 'PRO-WP 150' is right for you? Speak to our specialist solutions team today.
FIND OUT MORE PURCHASE OR HIRE WATCH VIDEO
WHY THE PRO-WP 150?
The frequency inverter ensures continuous speed adjustment and speed stabilization at the set value. They reduce time and effort for the welders, who can focus on their job with no need to constantly move around their workspace in order to get the best position. The compact design takes up minimal floor space and tilting up to 90 degrees improves the ergonomics of the workspace. The selection of various auxiliary accessories makes it possible to create an advanced modular welding station and customize it depending on required welding or cutting applications to maximize production efficiency.
FEATURES
Roller support
Cross slide assembly (option)
MINI C&B type PRO-WA 1X1
Optional accessories for various welding and cutting applications
Pendulum Oscillator OSC-8
Accessories
Lathe self-centering chuck D250 | Ext. Jaws Range: Ф 90–250 mm
Lathe self-centering chuck D400 | External clamping diameter: Ф 120–400 mm
Keyless self-centering chuck DD300
Keyless self-centering chuck DD400

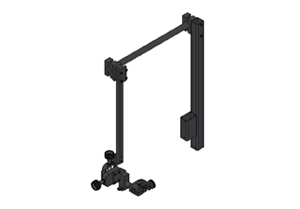

Torch Holder

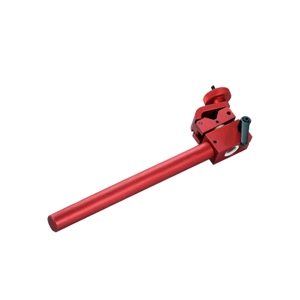

Short rod torch holder with clamp 16–22 mm
Long rod torch holder with clamp 16–22 mm
Short low rod torch holder with clip 16–22 mm
Short rod torch holder with clip 16–22 mm
Long rod torch holder with clip 16–22 mm
Standard torch holder with clamp 28–35 mm and rough angle adjustment
Precise torch holder with clamp 28–35 mm and precise angle adjustment
Standard machine torch holder for oxy-fuel cutting with vertical position setting and rough angle adjustment
Precise machine torch holder for oxy-fuel cutting with vertical position setting and precise angle adjustment.
Rod 150 mm for cutting torch holders
Specification
| Model | PRO-WP150 |
| Voltage | 1~ 220–240 V, 50–60 Hz 1~ 100–120 V, 50–60 Hz |
| Power | 0,25 kW |
| Speed range min/max | 0,12 - 2,4 rpm |
| Max load capacity | 150 kg (331 lbs) |
| Mass center offset from the table at a 90° tilt | up to 100 mm |
| Faceplate diameter | 450 mm (17.7”) |
| Hollow-shaft inside diameter | 28 mm (1.1”) |
| Tilting range with continuous angle adjustment | 0-90 ° |
| Tilting | manual |
| Max. welding current transfer | 400 A |
| Weight | 115 kg (254 lbs) |
| Product code: | PZY-0681-10-10-00-0 |
Features
| Left or right rotation |
| Continuous speed adjustment |
| Speed stabilization within full speed range from 0,12 rpm up to 2,4 rpm |
| Start/Stop (both controller and foot pedal) |
| Arc ignition |
| Remote control |
| Foot pedal for hands-free operation (option) |
| Heavy duty construction |
| Lots of auxiliary accessories enable building a modular welding station tailored for various welding and cutting applications |
