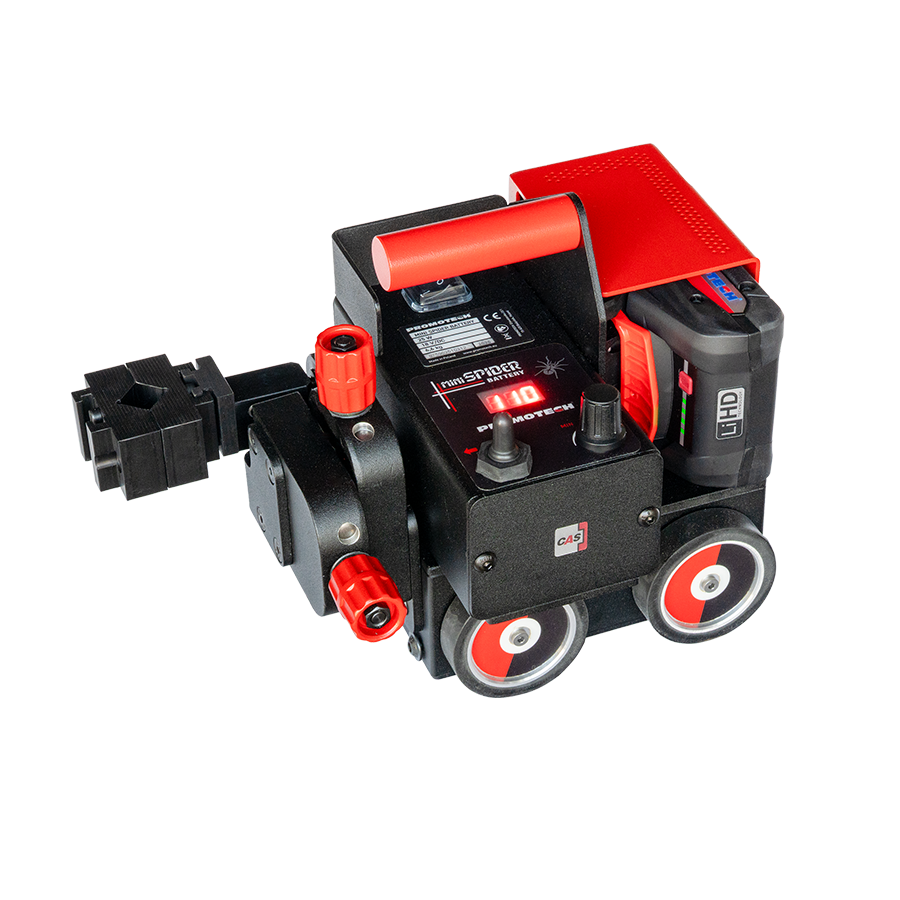

MINI SPIDER FILLET WELDING TRACTOR
Portable Mini Fillet Welder
The Mini Spider is a battery-powered welding tractor designed to produce continuous fillet welds using MIG/MAG torches. The torch can be easily swapped from one side of Mini Spider to another.
Want to make sure the 'Mini Spider Fillet Welding Tractor' is right for you? Speak to our specialist solutions team today.
FIND OUT MORE PURCHASE OR HIRE WATCH VIDEO

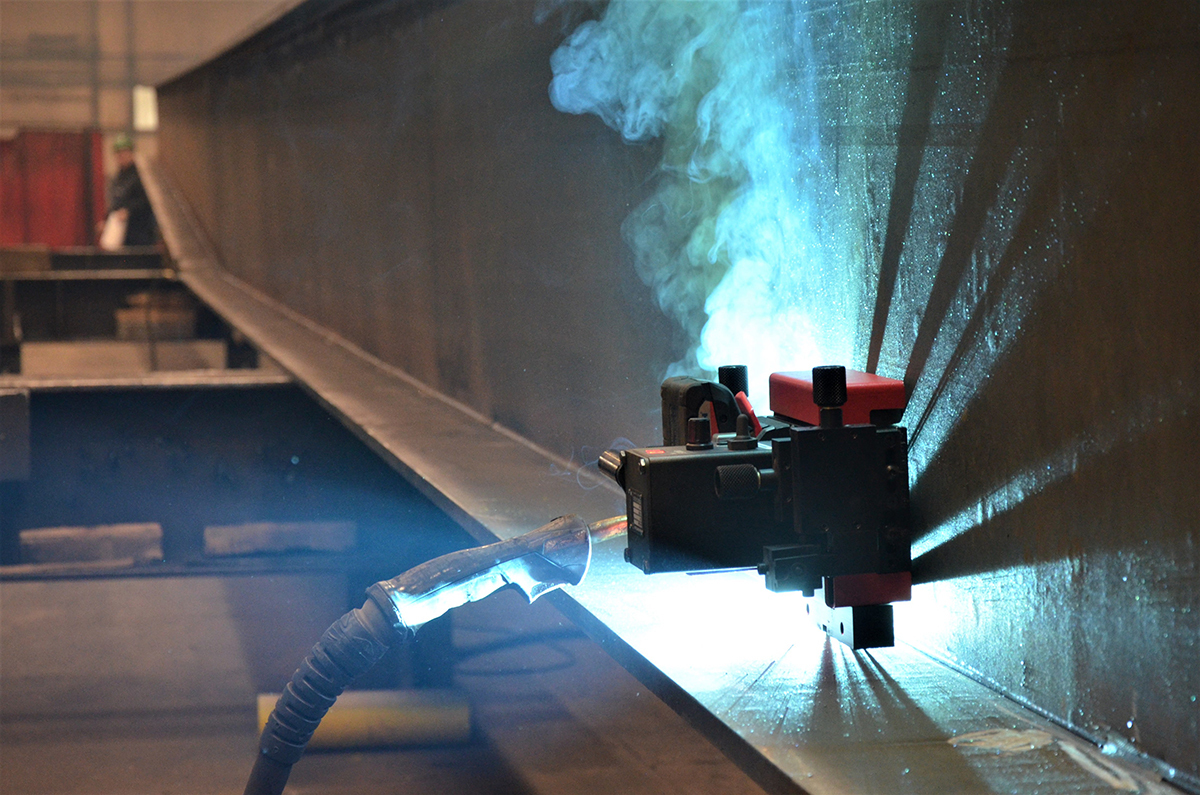

Continuous welding
Horizontal speed 0–120 cm/min
Vertical speed 0–110 cm/min
Torch placement on either side
Welding in narrow spaces
Weight 7,6 kg
WHY THE MINI SPIDER?
4-wheel drive system with magnetic traction and a feedback loop provides highly efficient speed stabilisation.
Constant, continuous and repeatable travel speed enables weld bead geometry that is exact to the required specifications, thus reducing costly over welding and substantially decreasing filler metal usage.
An optional power supply can be used to plug the carriage into a 110–240 V power source.
FEATURES
Welding edge to edge
Welding edge to edge

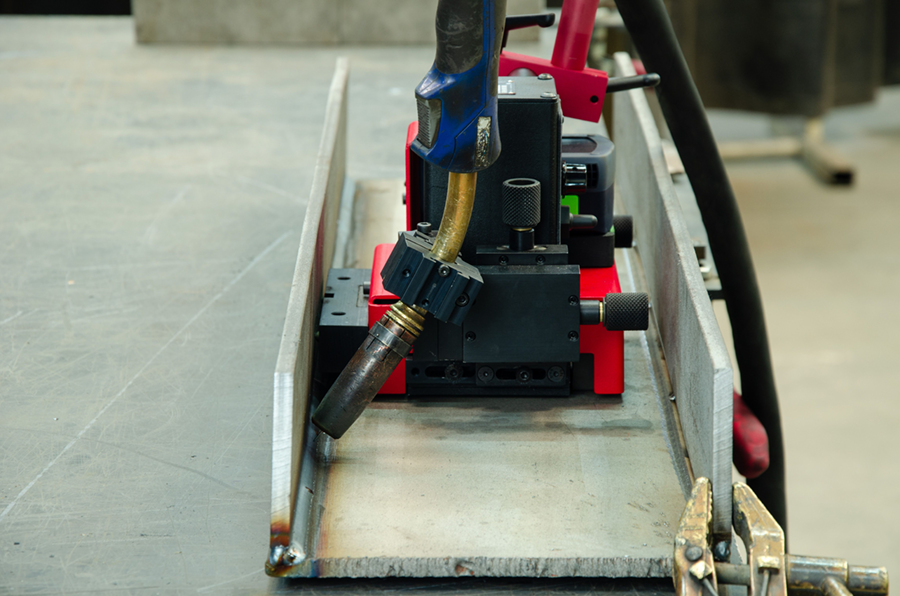

Welding in narrow spaces
Welding in narrow spaces (min. width 200 mm)

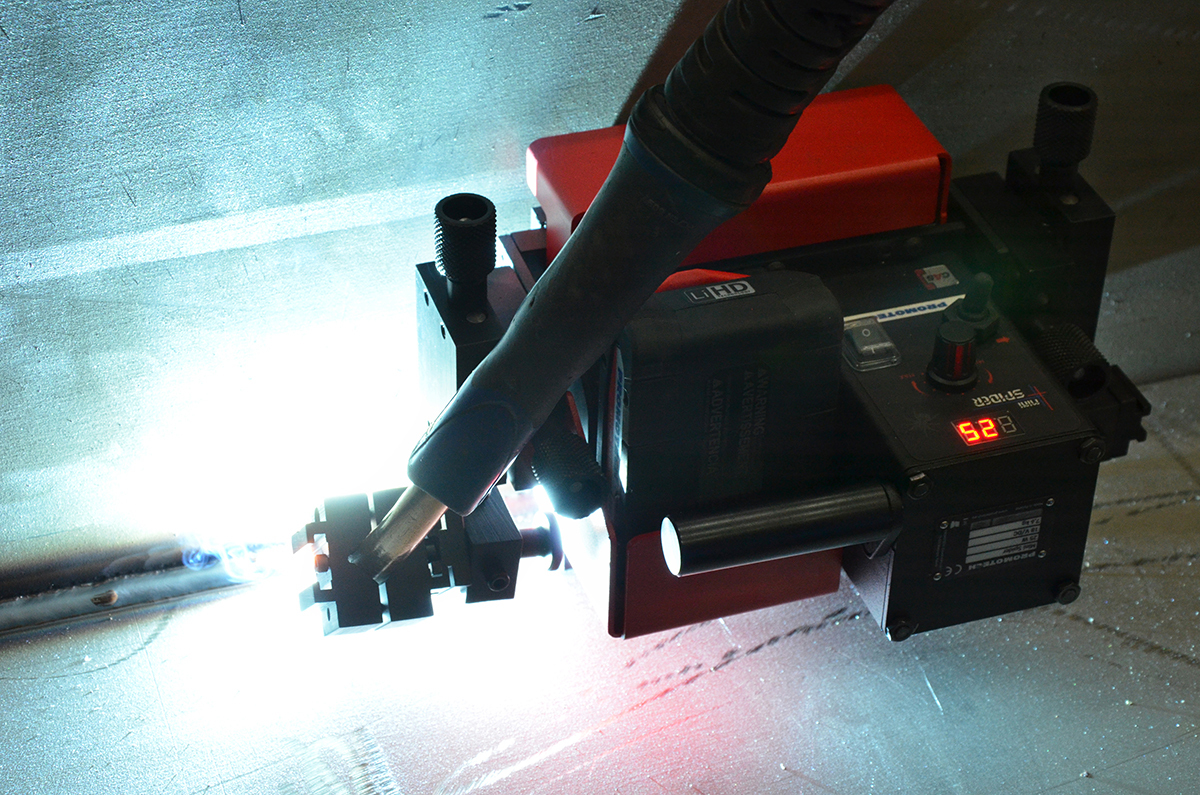

Torch placement on either side
Torch placement on either side

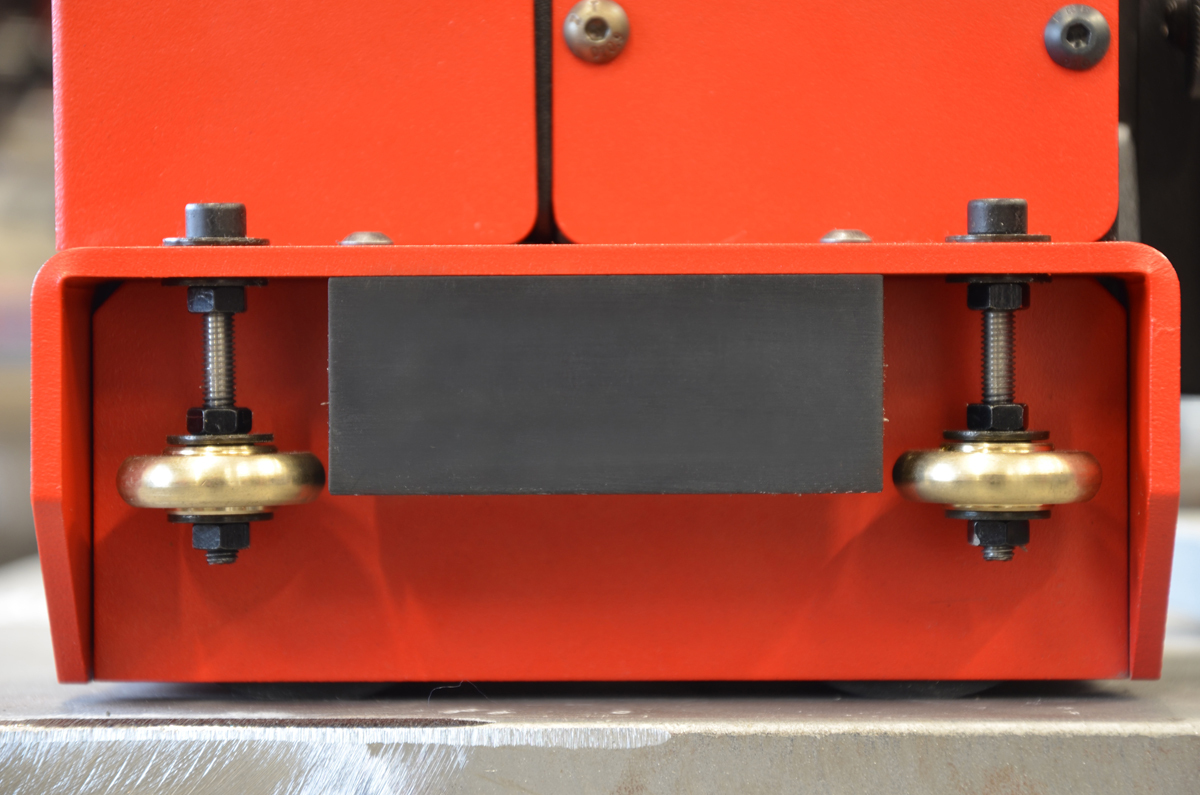

Height-adjustable guide rollers in a range of 13 mm

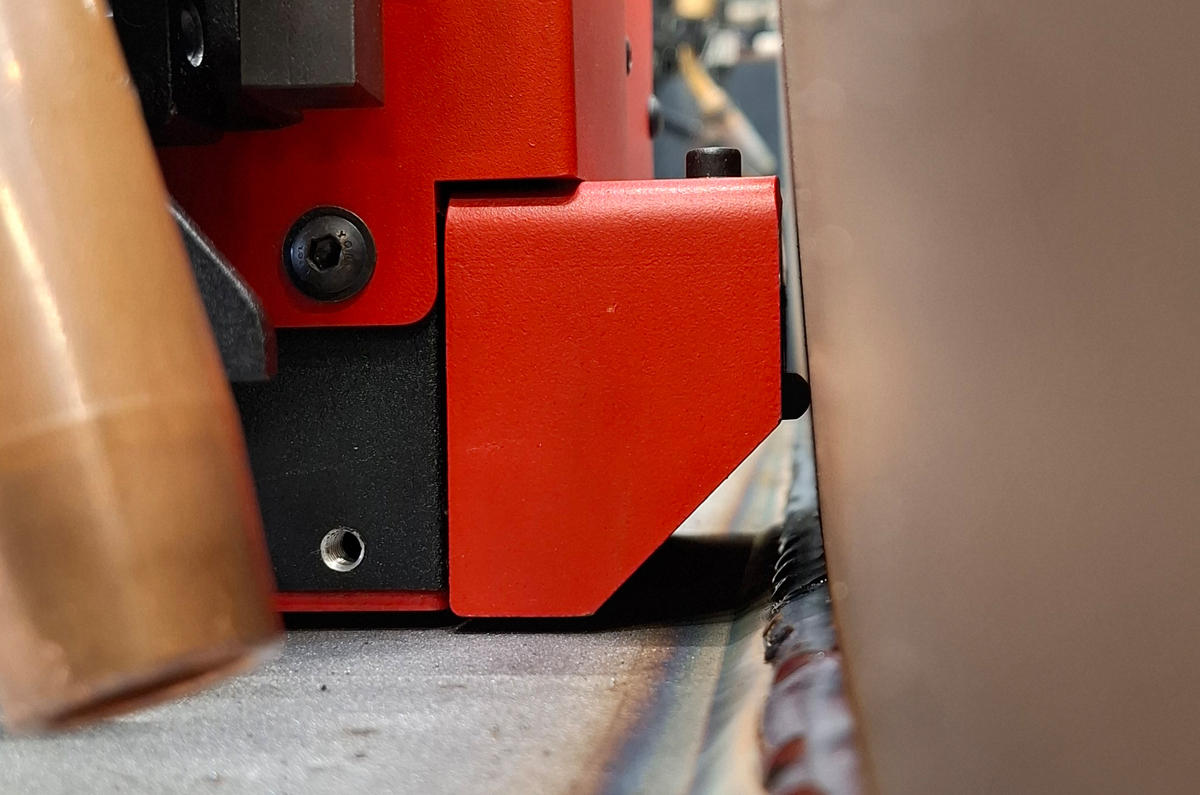

Specially designed shielding with an undercut

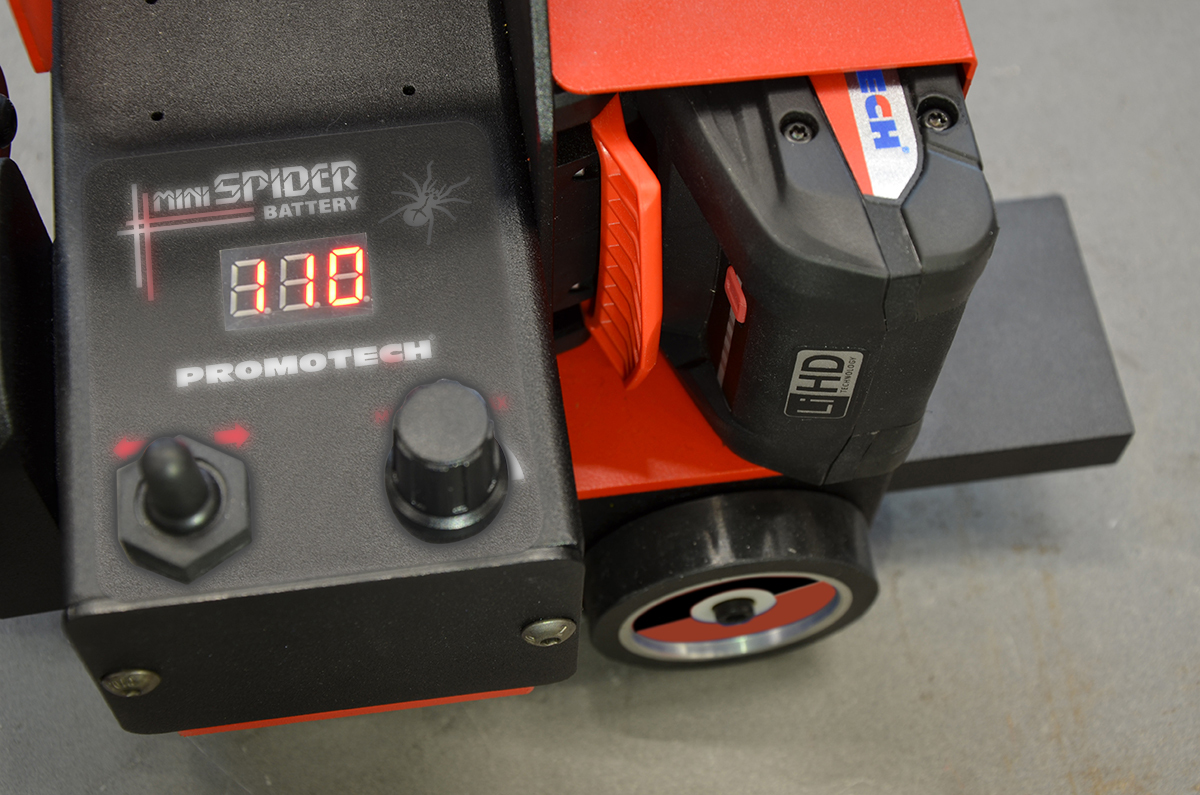

Horizontally laid control panel with display
Accessories
Torch holder
5.2 Ah Battery
Power supply
Cable anchor
Battery charger
Power cord 3 m (10 ft)
Specification
| Voltage | 18 V DC, 5.2 Ah | 1~ 110–240 V, 50–60 Hz (option) | |
| Power | 25 W | |
| Welding position (according to EN ISO 6947 and AWS/ASME) | PB / 2F, PD / 4F | |
| Torch diameter | 16–22 mm (0.63–0.87’’) | |
| Min. workpiece thickness | 4 mm (0.16”) | |
| Ground clearance | 4 mm (0.16”) | |
| Horizontal pulling force | 150 N | |
| Vertical pulling force | 150 N | |
| Horizontal speed * | 0–110 cm/min (0–43.3 in/min) | |
| Vertical speed * | 0–100 cm/min (0–39.4 in/min) | |
| Weight (w/o battery) | 7.6 kg (22 lbs) | |
