GECKO

Portable Mini Fillet Welder

A portable mini fillet welder designed to produce consistent high-quality welds, the Gecko is compact. lightweight and ideal for creating a safer working environment for operators.

Want to make sure the 'Gecko' is right for you? Speak to our specialist solutions team today.

FIND OUT MORE  PURCHASE OR HIRE  WATCH VIDEO
Gecko
Continuous welding

Continuous welding

Dual Arc Ignition

Welding in horizontal and vertical positions

Min concave radius 1000 mm

Min concave radius 1250 mm

Min convex radius 1000 mm

Min convex radius 1000 mm

Dual torch welding

Dual torch welding

Dual Arc Ignition 1

Dual Arc Ignition

Horizontal speed 0 110 cm min

Horizontal speed 0–110 cm/min

Vertical speed 0 100 cm min

Vertical speed 0–100 cm/min

Gecko flexible track


Depending on sort of fixing units in use with flexible trackway, Gecko and Gecko HS welding tractors are suitable for applications with carbon steel, stainless steel and aluminum.

Gecko flexible track

FEATURES


Gecko feature image 1
Multifunctional led display
Gecko Multi surface guides
Multi surface guides
Gecko dual torch welding 1
Dual torch welding
Gecko continous welding 1
Continous welding

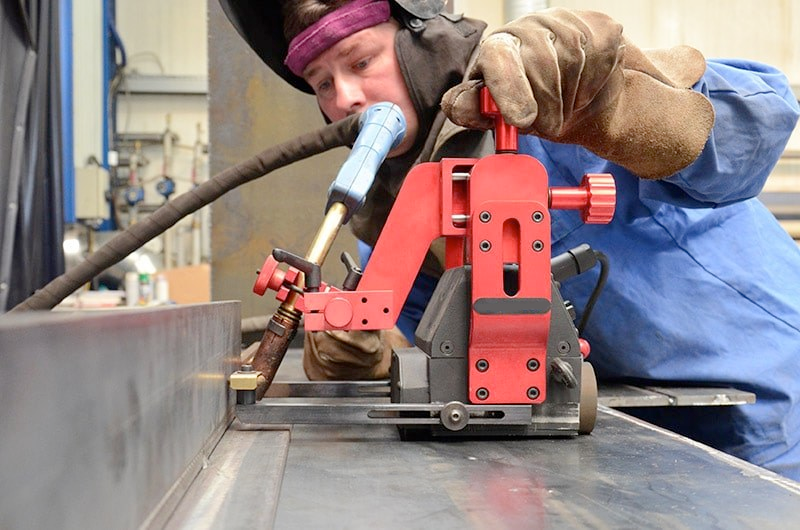

Gecko feature image 5
Precise torch adjustment
Gecko welding in vertical positions 3
Welding in vertical positions

Accessories


Standard guide arms (set of 2 pcs)

Standard guide arms (set of 2 pcs)

Cable anchor

Cable anchor

Power cord 3m (10 ft)

Power cord 3m (10 ft)

Torch Holder Long Rod Clamp Assembly

Torch Holder Long Rod Clamp Assembly

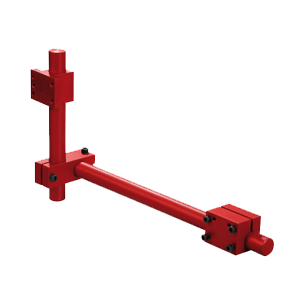

Torch Extension Arm

Torch Extension Arm

Extended cross-slide 0-76 mm (0-3”) up-down, 0-35 mm (0-1.38”) left-right

Extended cross-slide 0-76 mm (0-3”) up-down, 0-35 mm (0-1.38”) left-right

Display shield

Display shield

Fall arrester device

Fall arrester device

Cable anchor

Cable anchor

Dual Torch Mount

Dual Torch Mount

Short Rod Clamp

Short Rod Clamp

Magnet blocks (front) with increased power M5x25

Magnet blocks (front) with increased power M5x25

Magnet blocks (back) with increased power M6x25

Magnet blocks (back) with increased power M6x25

Torch clamp 22–35 mm

Torch clamp 22–35 mm

Magnet blocks (back) M6x25 incl. additional spacer plate required for Gecko Battery only

Magnet blocks (back) M6x25 incl. additional spacer plate required for Gecko Battery only

Download the Gecko specifications

DOWNLOAD BROCHURE DOWNLOAD MANUAL

Watch our video of the Gecko


Want to find out more, buy or hire?
