ABM-30

AUTO FEED TRACKLESS BEVELLER

The ABM-30 portable beveling machine from SteelBeast performs auto-feed beveling on steel plates on the top, face and bottom edges. This beveller doesn't need a track to move along the steel plate yet still produces accurate high-quality, double-sided bevels without thermal distortion or heat-affected zones on plate thicknesses ranging from 8-60 mm.

Want to make sure the 'ABM-30' is right for you? Speak to our specialist solutions team today.

FIND OUT MORE  PURCHASE OR HIRE  WATCH VIDEO
ABM-30
Top bevel

Top Beveling

Icon facingoff

Facing Off

Bottom bevel

Bottom Beveling

Plate thickness

Plate Thickness Max 60mm

Bevel width

Bevel Width up to 30mm

Bevel angle6060

Bevel Angle between -70° & 70°

FEATURES OF THE ABM-30

The ABM-30 features an infinitely adjustable bevel angle between – 70 and + 70 degrees and is capable of producing bevels up to 30 mm wide. This also allows for facing in both directions with the milling head depth of 1 mm.

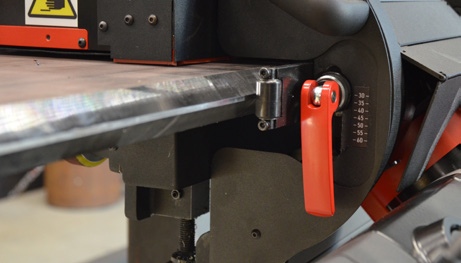

Convenient adjustment to plate thinkness
Convenient adjustment to plate thinkness

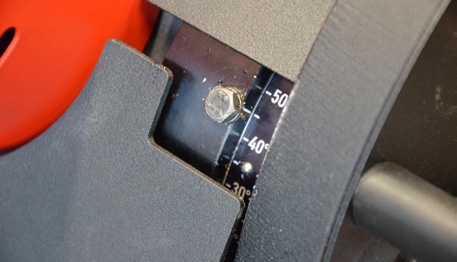

Precise bevel angle setting
Precise bevel angle setting

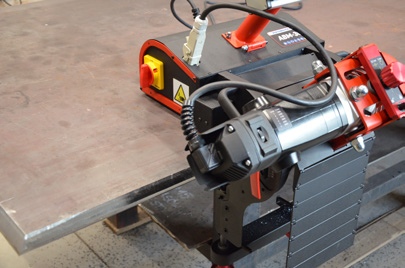

Top beveling image
Top bevelling
Bottom beveling image
Bottom beveling
Facing off image
Facing-off

Why choose the ABM-30?

Needs no track to travel in both directions with feed speed up to 2 m/min
4 wheels feed drive eliminates hard physical work of the operator
Produces double-side bevels without having to flip the plate enhancing safety and reducing material handling time and expense
Edge to Edge working range
Semi-automatic feed stop at end of the metal sheet
Variable spindle speed
Bevel width up to 30 mm (1-3/16”)
Variable angle (-70°+70)°
Max. plate thickness up to 60 mm
Innovative, robust chip protection solution

ABM-30 Control Panel


  • Feed direction indication
  • Material detection
  • Bar graph for motor load illustration
  • Visual warning signals
ABM-30 Control Panel

Specification

Voltage 1~ 200-240 V, 50/60 Hz | 1~ 110-120 V, 50/60 Hz
Power 2200 W
Spindle Rotational Speed (without load) 1800-5650 rpm
Feed Speed 0-2 m/min (0-6.5 ft/min)
Bevel Angle (β, Fig. 1) From -70° to 70°
Maximum Bevel Width (b, Fig.1) 30mm (1.18")
Sheet Thickness 8-60mm (0.3-2.3")
Required Ambient Temperature 5-40°C
Weight 53kg (116.8 lbs)

Download the ABM-30 specifications

DOWNLOAD BROCHURE
